Features
■LVDS Interface with 2 pixel / clock
■High-speed response
■6-bit(Hi-FRC)color depth, display 16.7M colors
■High luminance and contrast ratio, low reflection and wide viewing angle
■DE (Data Enable) only
■Gamma Correction

Application
■Desktop Type of PC & Workstation Use
■ Slim-Size Display for Stand-alone Monitor
■ Display Terminals for Control System
■ Monitors for Process Controller

General Specification

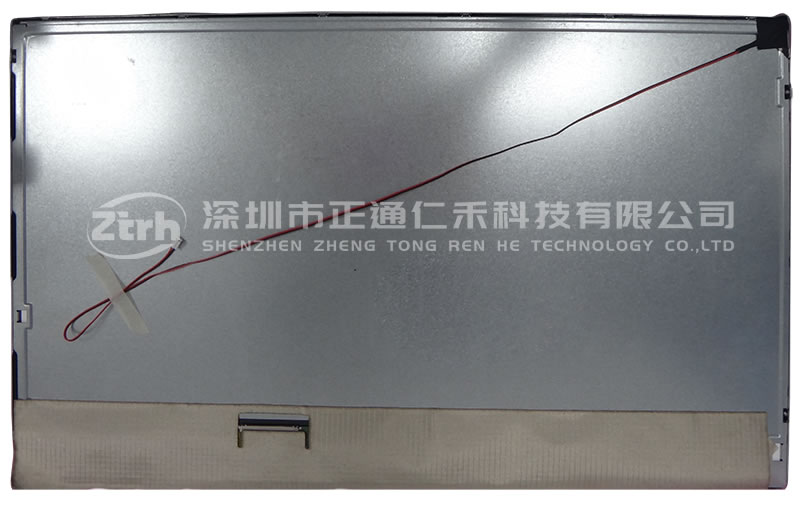

The followings are general specifications at the model ZTM215BOEL7201.

No.	Item	Specification	Unit
1	Panel Size	21.5 inch Diagonal	-
2	Active Area	476.064(H) × 267.786(V)	mm
3	Pixel Pitch	1920(H) ×1080(V)	pixels
4	Outline Dimension	66.6(W)×181.0(H)×4.5 (D)	mm
6	Number of Colors	16.7M	-
7	Display Mode	Transmission mode, normally black	-
8	Viewing Direction	Full viewing	-
9	Display Format	RGB vertical stripe	-
10	Surface Treatment	Anti-Glare	-
11	Interface	MIPI	-
12	Backlight	White LED	-
13	Operation Temperature	-20~70	℃
14	Storage Temperature	-30~80	℃
15	Weight	-	g
